产品概述

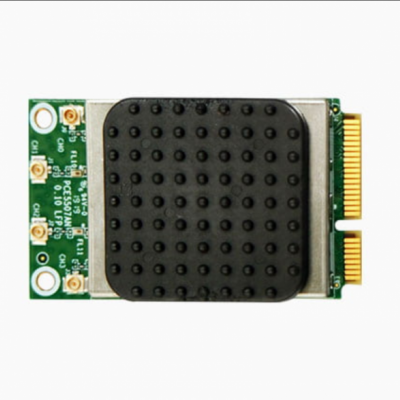

SparkLAN WPEQ-450AC 是一款高度集成的无线 LAN (WLAN)、WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE 模块，支持具有多用户 MIMO（多输入多输出）无线的 4 流 802.11ac局域网（WLAN）。它在单芯片 Mini-PCIe 模块中集成了 4×4 (4T4R) WLAN MAC、基带和单频射频。WPEQ-450AC 通过 Mini-PCIe 为 M2M（机器对机器）连接产品/设备提供了具有成本效益的解决方案，它可以轻松集成到最熟悉的操作系统（Linux）中。
WPEQ-450AC 是一款 Wave2 11ac 无线电，可帮助优质 WiFi 路由器、网关、机顶盒和范围扩展器支持联网家庭中的更多设备和要求更高的应用。支持80+80MHz频道，近距离容量翻倍
适用应用
-
- • 工业电脑
- • 车载路由器
- • 车载前排
- • 机器人
- • 车载电脑
- • 户外IPTV
- • 后终端无人机
- • 智能网关
参数特性
STANDARD
|
| WI-FI |
IEEE 802.11ac/a/n |
| Chipset |
·Qualcomm Atheros QCA9984 |
| Host Interface |
WLAN : PCIe |
RADIO
|
| Antenna |
4 x IPEX MHF1 connectors |
| Operating Frequency |
802.11ac/a/n ISM Band |
|
5.150GHz~5.850GHz
*Subject to local regulations
|
MODULATIONS
|
| 802.11n |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac |
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY
|
| WiFi |
Power – TX (± 2dBm) |
Sensitivity – RX |
| 11a @ 54Mbps |
17dBm |
≤ -72dBm |
| 11an HT20 @ MCS 7 |
16dBm |
≤ -68dBm |
| 11an HT40 @ MCS 7 |
15dBm |
≤ -66dBm |
| 11ac VHT80 @ MCS 9 |
15dBm |
≤ -56dBm |
| 11ac VHT80+80 @ MCS 9 |
14dBm |
≤-56dBm |
POWER CONSUMPTION
|
| Continue TX |
2250mA |
| Continue RX |
750mA |
ENVIRONMENTAL
|
| Operating Voltage |
DC 3.3V |
| Temperature Range |
-20~ 70°C (Operating) |
-20 ~ 90°C (Storing) |
| Humidity(Non-Condensing) |
5~ 90% (Operating) |
5 ~ 90% (Storing) |
SIZE
|
| Dimension (MM) |
50.80mm(±0.3mm) x 29.85mm(±0.3mm) x 7.8mm(±0.3mm) |
| Weight |
12.6g |
SOFTWARE
|
| Driver |
Linux |
| Security |
64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous
|
| Warranty Period |
12 Month |
| HS Code |
8517620050 |
认证
 |
 |
 |
 |
| USA |
EU Region |
Japan |
Canada |
环境合规
 |
 |
|
|
| ROHS |
REACH |
|
|
